Plus 02 Retractable Support

Description

Designed for trailers, providing excellent stability while parked. The fixed foot plate distributes the load efficiently on different surfaces, while the retractable mechanism allows the jack to fold up during transport, preventing ground contact and improving safety.

Features

Part Number: 207004
Description: Plus 02 Retractable Trailer Jack
Maximum Static Load Capacity: 250 kg
Maximum Dynamic Load Capacity: 200 kg
Foot Plate Size: 79 × 50.80 mm
Mounting Type: Retractable (Swing-Up)
Compatible Frame Size: 50 × 100 mm
Tube Diameter: Ø 50.8 mm

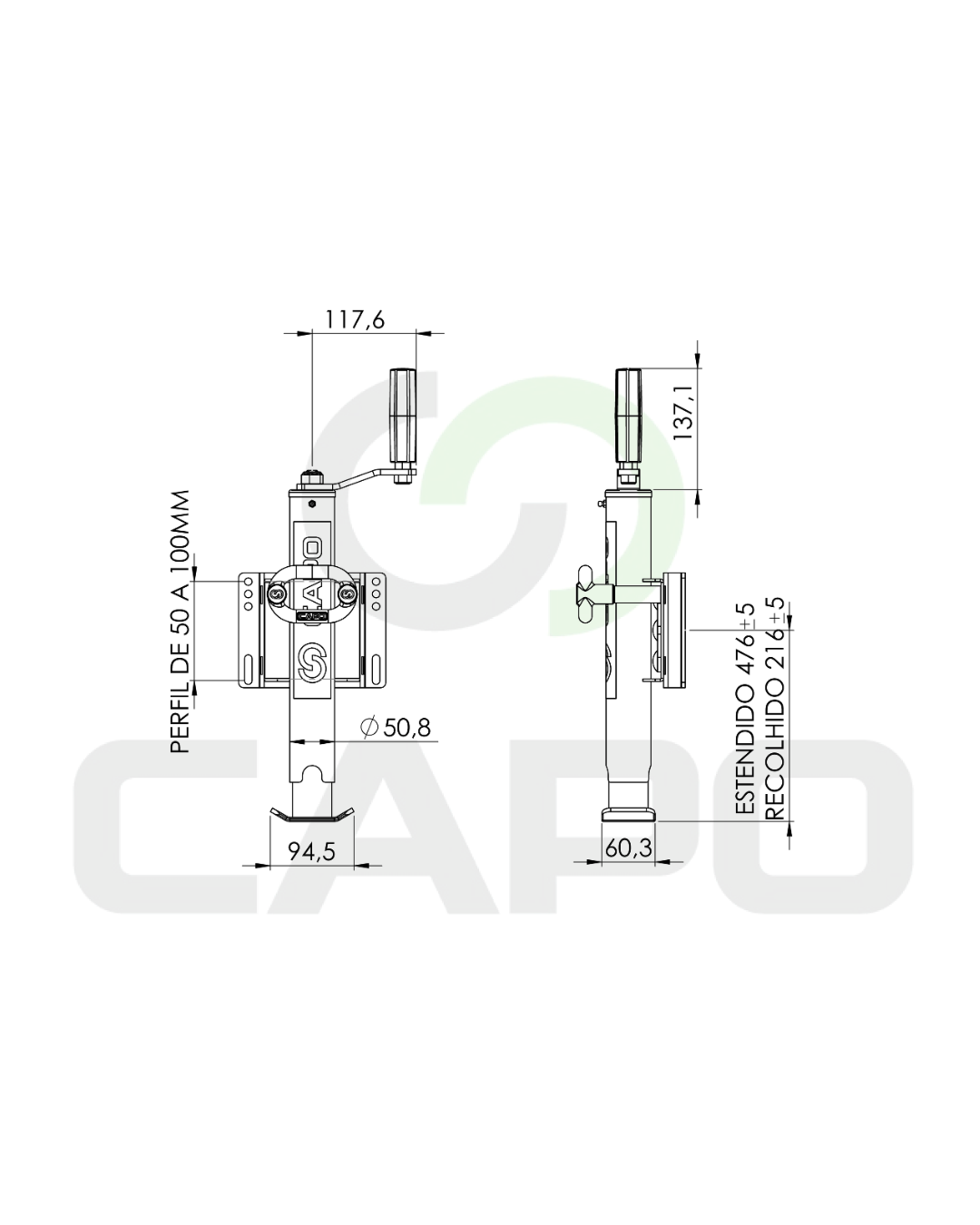

Adjustment Range: Retracted: 216 mm (±5 mm) | Extended: 476 mm (±5 mm)
Operation: Top Side Crank Handle

SPECIFICATIONS

CÓDIGO	DESCRIÇÃO	CAP. MÁX. ESTÁTICA	CAP. MÁX. DINÂMICA	MEDIDA SAPATA	FIXAÇÃO
207004	PEDESTAL PLUS 02 ESCAMOTEAVEL	250KG	200KG	79X50,80MM	ESCAMOTEAVEL
207004C	KIT FIXADOR PEDESTAL LIGTH E PLUS 120MM
