Plus 01 Retractable Support

Description

Designed for trailers, providing excellent stability while parked and smooth maneuverability. The retractable mechanism allows the jack to fold up during transport, preventing ground contact and improving safety.

Features

Part Number: 207002
Description: Plus 01 Retractable Trailer Jack
Maximum Static Load Capacity: 250 kg
Maximum Dynamic Load Capacity: 200 kg
Wheel Diameter: 8" (Ø 200 mm)
Wheel Width: 45 mm
Mounting Type: Retractable (Swing-Up)
Compatible Frame Size: 50 × 100 mm
Tube Diameter: Ø 50.8 mm

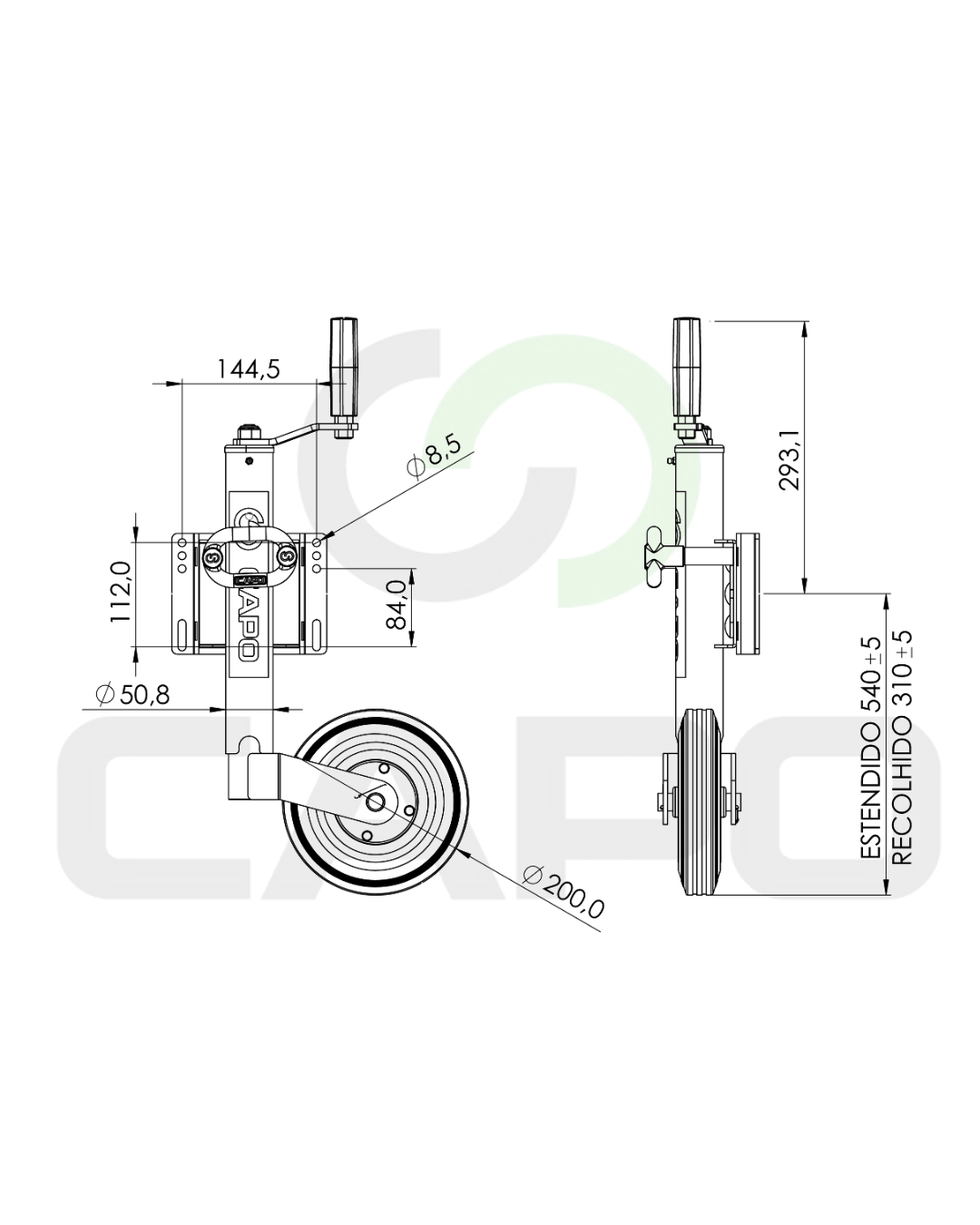

Adjustment Range: Retracted: 310 mm (±5 mm) | Extended: 540 mm (±5 mm)
Overall Height: 293.1 mm
Operation: Top Side Crank Handle

SPECIFICATIONS

CÓDIGO	DESCRIÇÃO	CAP. MÁX. ESTÁTICA	CAP. MÁX. DINÂMICA	DIÂMETRO RODA	LARGURA RODA	FIXAÇÃO
207002	PEDESTAL PLUS 01 ESCAMOTEAVEL	250KG	200KG	8"	45MM	ESCAMOTEÁVEL
207004C	KIT FIXADOR PEDESTAL LIGTH E PLUS 120MM
